What is an RJ45 Connector?
Posted on July 31, 2025
The RJ45 connector is a standardized interface used mainly in Ethernet networks to connect devices like computers, routers, and switches. It's known for its reliability, easy installation, and cost-effectiveness—making it vital in modern networking.
🧩 Components of RJ45 Connectors
RJ45 connectors typically consist of:
- Plastic housing (usually polycarbonate)
- 8 metal contacts made of nickel- and gold-plated phosphor bronze
They may have 2-prong (for stranded wires) or 3-prong contacts (better for both stranded and solid wires).
📊 RJ45 Categories
RJ45 connectors must match the category of the cable for compatibility:
| Category | Frequency | Speed | Use Case |
|---|---|---|---|
| CAT5E | 100 MHz | 1 Gbps | Homes, small offices |
| CAT6 | 250 MHz | 1 Gbps | Medium businesses |
| CAT6A | 500 MHz | 10 Gbps | Enterprises, data centers |
| CAT7 | 600 MHz | 10 Gbps | High-speed, high-density use |
🔧 RJ45 Connector Types
By Shielding

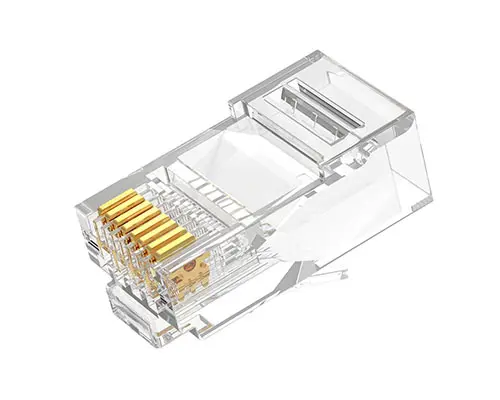

- Unshielded (UTP): No EMI protection, more affordable.

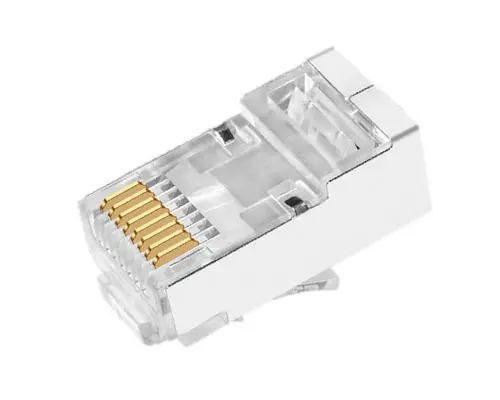

- Shielded (STP): Extra shielding to reduce signal interference.
By Structure
- Non Pass-Through: Wires don’t extend through the end. Needs careful trimming.
- Pass-Through: Wires pass through for easier alignment and crimping.
By Installation Method
- Standard: Requires a crimping tool.
- Toolless: No tools needed—great for quick jobs or temporary setups.

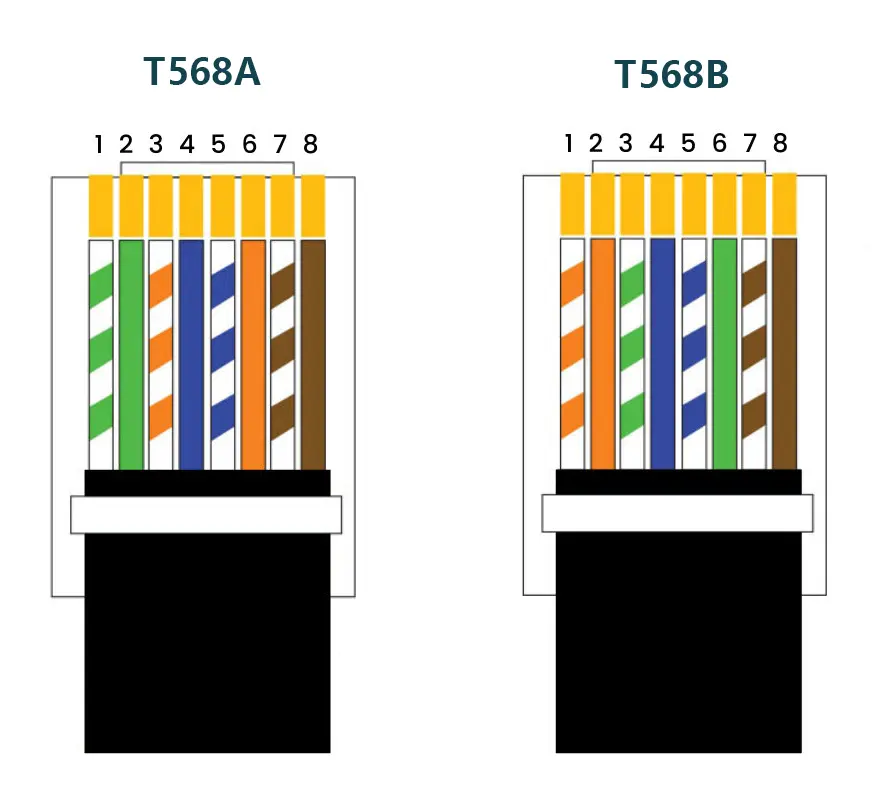

🔌 Wiring Standards
There are two main wiring schemes for RJ45:
- T568A
- T568B (most common)
Both are compatible if used consistently on both ends.
🛠️ How to Crimp an RJ45 Connector
If you're unsure how to crimp a standard RJ45, many tutorials and tools are available online to walk you through it. A typical process includes:
- Strip the cable jacket
- Align wires by color code (T568A or T568B)
- Insert into connector
- Crimp with appropriate tool
🌐 Applications
RJ45 connectors are critical for achieving fast, stable data transmission in homes, offices, enterprises, and data centers.
